F-7MS Cycle wall clamp

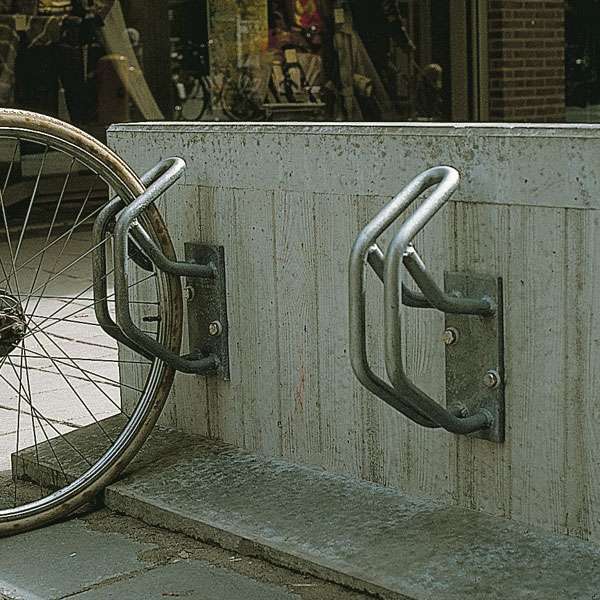

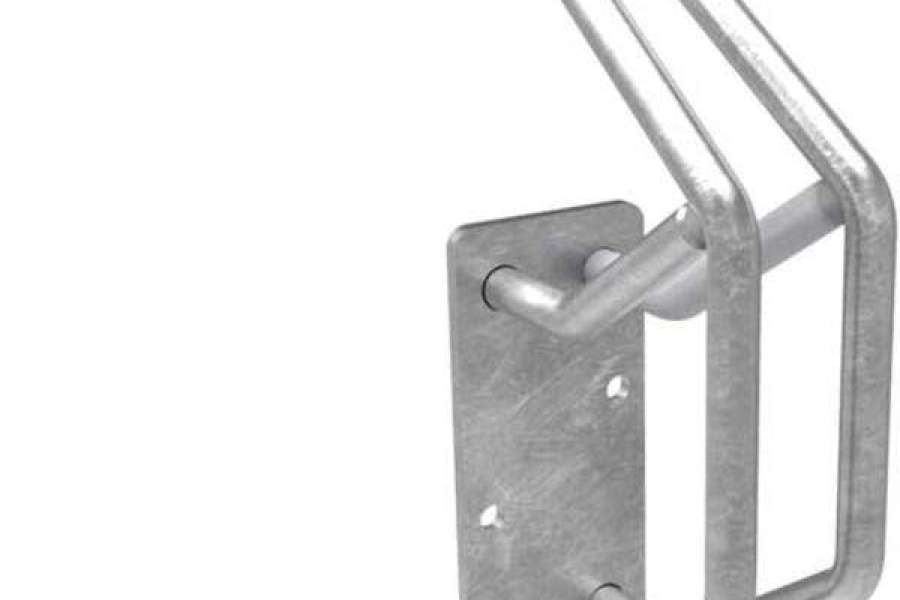

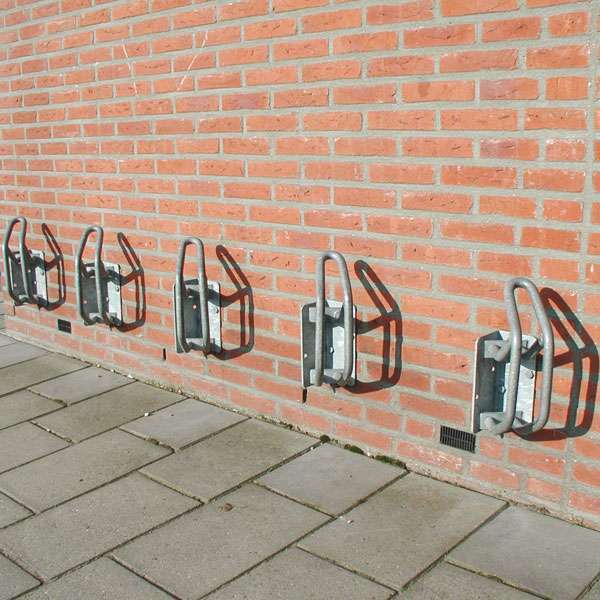

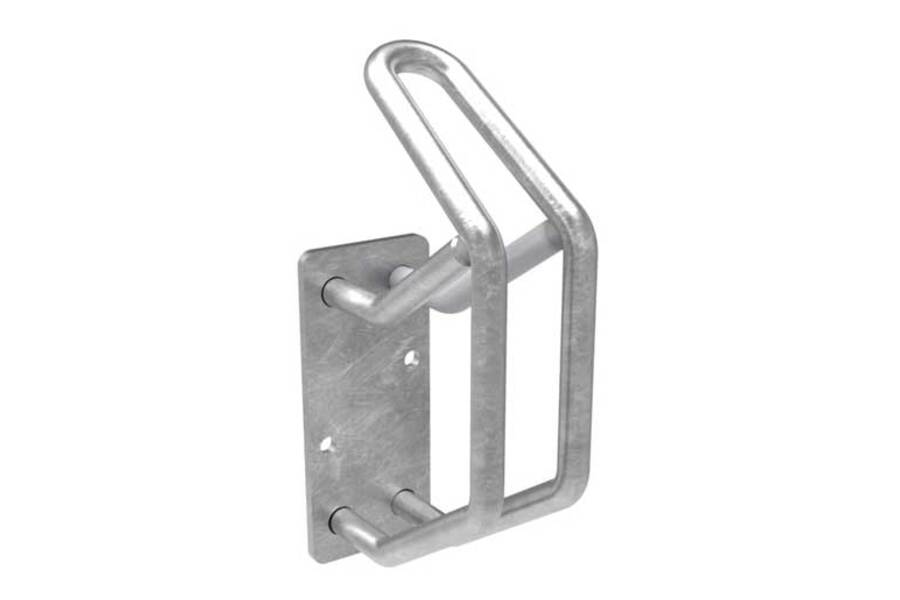

Heavy duty cycle wall clamp made of solid 20 mm steel welded onto a 230x100 mm mounting plate which is 8 mm thick and has been hot-dip galvanised. Equipped with 2 fixing holes of 13 mm diameter. Available in 90º (photo 2A) and 45º (photo 2B). Depth with bicycle is then 2,000 mm and 1,500 mm respectively.
We recommend that the clamps be fitted at a centre to centre distance of 650 mm at 90º and 920 mm at 45º. The centre of the clamp must be mounted 350 mm above the ground.
A version suitable for mountain bikes (F-7MBS) is now also available. We recommend that these clamps be fitted at a centre to centre distance of 750 mm at 90º and 1060 mm at 45º.
F-7MS is also available with a gutter for high low positions to save space.
